ComNav SinoGNSS Cost-effective K700 GPS Tracker Board with Advanced ComNav ASIC Chip

FOB Reference Price:Get Latest Price
US $460-490 / Pieces | 1 Piece/Pieces GPS Tracker Board (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SinoGNSS
Model Number:
K700
Product name:
GPS Module
GPS:
L1
BeiDou:
B1
GLONASS:
L1
SBAS:
WAAS, EGNOS, MSAS, GAGAN
Standalone:
1.5 m 3D RMS
L*W*H:
71mm*41mm*11mm
Weights:
18 g
Positioning data outputs:
1Hz, 2Hz ,5Hz, 10Hz, 20Hz, 50Hz (depends on installed option)
Application:
UAV/Mapping assets /GNSS guidance/ Monitoring Systems
Supply Ability
Supply Ability:
600 Piece/Pieces per Month GPS Tracker Board
Packaging & Delivery
Packaging Details
K700 GPS Tracker Board:
- Packaging: 1 Piece in 1 Carton.
- Gross Weight: 0.05 Kg/ Net Weight: 0.18 g.
Port
Shanghai
Lead Time :
Within 7 Days after Payment

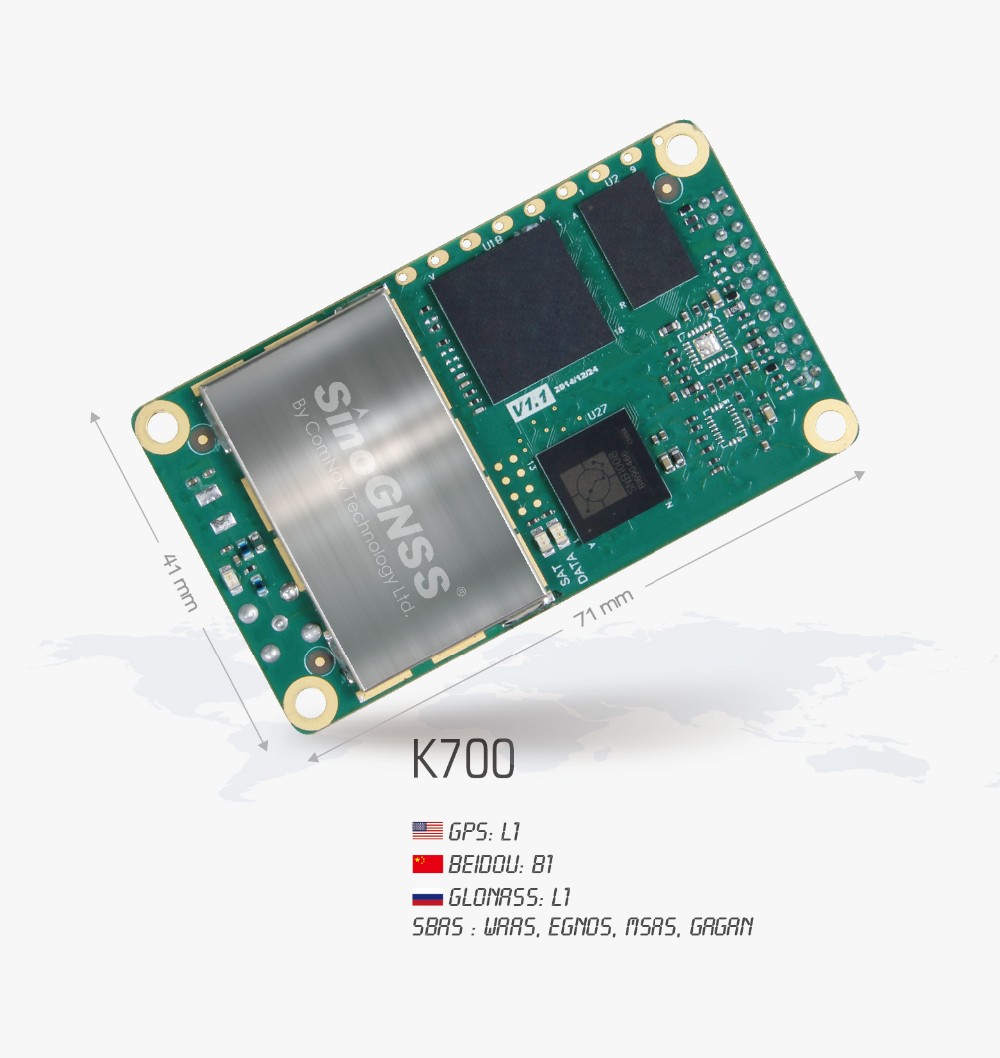

ComNav SinoGNSS Cost-effective K700 GPS Tracker Board with Advanced ComNav ASIC Chip







Signal Tracking

Performance Specifications

Channels: 168 channels

GPS: L1

BeiDou: B1

GLONASS: L1

SBAS: WAAS, EGNOS,MSAS,GAGAN

Cold start: <50s

Warm start: <45s

Signal reacquisition: <2s

Velocity Accuracy: 0.03m/s

Acceleration: 4g

Overload: 15g

Communications                      Data Format

Communication port :3 LV-TTL ports, baud rates up to 921,600 bps

Positioning data outputs :1Hz, 2Hz ,5Hz, 10Hz, 20Hz, 50Hz (depends on installed option)

1 Pulse Per Second Output

Event marker input

3 LEDs (indicating Power, Satellite Tracking and Differential Data)

Correction data I/O: CMR, RTCM 2.x,3.x

Position data output: ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PTNL, PJK

ComNav Binary (compatible with major brands)

Physical

Environmental

Size(L×W×H): 71mm×41mm×11mm

I/O interface: 24-pin double male header

Weight: 18 g

Antenna : 1 x MCX receptable(+3.3V~+5.5VDC&0~100mA)

Working temperature: -40 to +80

Storage temperature: -50 to +95

Humidity: 95% no condensation

Electrical

Software

Input voltage: +3.3V ~ +5.5VDC

Power consumption: 0.6W (3 constellations)

OEM Board setup: ComNav Compass Receiver Utility software
