High Accuracy SinoGNSS ComNav M600 GNSS Heading Receiver for Reference Station

FOB Reference Price:Get Latest Price
US $7,490-9,190 / Pieces | 1 Piece/Pieces GNSS Heading Receiver (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ComNav
Model Number:
M600
Channels:
404
GPS:
L1 C/A, L2C, L2P
BeiDou:
B1, B2
GLONASS:
L1 C/A, L1P, L2 C/A, L2P
SBAS:
WAAS,EGNOS,MSAS,GAGAN
Azimuth:
(0.2/R)°2
Size(W*H):
200mm*145mm*80mm
Weight:
1.3 Kg
Delivery:
TNT/DHL/FF/Other Express
Application:
Land Surveying/ Machine Control/Agriculture/Monitoring System
Supply Ability
Supply Ability:
688 Piece/Pieces per Month GNSS Heading Receiver
Packaging & Delivery
Packaging Details
- M600 GNSS Heading Receiver:
Packaging Size: 40X31X17 cm
Packaging: Total 1 Carton 1 Piece Receiver in 1 Carton
- Gross Weight: 4.5 Kg/ Net Weight: 4 Kg.
Port
Shanghai
Lead Time :
Within 7 Days after Payment

High Accuracy SinoGNSS  ComNav M600 GNSS Heading Receiver for Reference Station







Signal Tracking

Performance Specifications

404 channels
- GPS: L1 C/A, L2C, L2P
- BeiDou: B1, B2
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- SBAS: WAAS, EGNOS, MSAS, GAGAN

• Cold start: <50 s
• Warm start: <45 s
• Hot start: <15 s
• RTK Initialization time: <10 s
• Signal reacquisition: <1.5 s
• Initialization reliability: >99.9%
• Velocity accuracy: 0.03 m/s
• Acceleration: 4 g
• Overload: 15 g
• Time accuracy: 20 ns

Heading Specifications

Positioning Specifications

• Azimuth: (0.2/R)°2
• Roll or Pitch: (0.4/R)°

Post Processing

2.5 mm+1 ppm Horizontal

5 mm +1 ppm Vertical

Real Time

8 mm+1 ppm Horizontal

15 mm +1 ppm Vertical

E-RTK(<100 km)

0.2m + 1 ppm Horizontal

0.4m + 1 ppm Horizontal

DGPS <0.4m RMS

SBAS 1 m 3D RMS

Standalone 1.5 m 3D RMS

Communications

Data Format

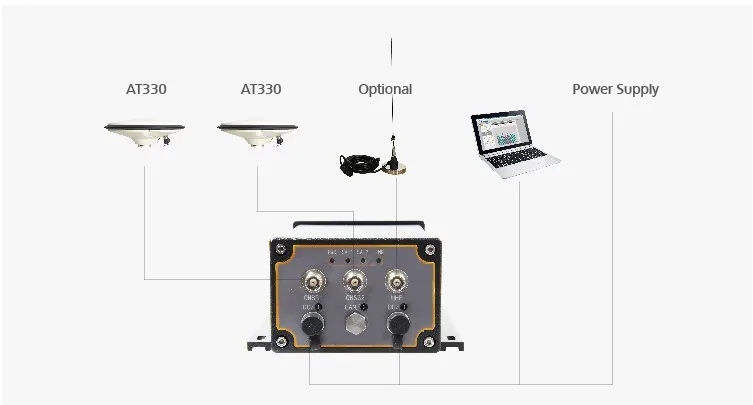

• 2 Serial ports (7-pin Lemo), 3 TNC Connectors
• Optional UHF:
- Internal Rx: 410-470 MHz3
- External Tx UHF is available
• Optional Ethernet
• 1 Pulse Per Second output, Event Marker input4
• 4 LEDs (indicating Power, Satellite Tracking and Differential Data)

Correction data I/O: RTCM 2.X, 3.X, CMR(GPS only),
CMR+(GPS only)
• Position and heading data output:
- ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA,
ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK
- ComNav Heading format, GPTRA
- ComNav Binary
- BINEX Data: 0x00, 0x01-01, 0x01-02, 0x01-05, 0x7d-00,
0x7e-00, 0x7f-05
- Position data output rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz

Physical

Environmental

• Size(L × W × H): 200 mm × 145 mm × 80 mm
• Weight: 1.3 kg with internal UHF
• Housing: Rugged metal housing

• Operating temperature: -40 °C to + 70 °C
• Storage temperature: -45 °C to + 80 °C
• Humidity: 95% no condensation

Electrical

Optional accessories

• Power consumption: 3 W
• External power input: 10.5-28 VDC

• AT-series GNSS antenna
• 5 m/10 m RF Cables

Software



ComNav Compass Receiver Utility software
