ComNav SinoGNSS M300 Mini GPS Receiver with NMEA-0183

FOB Reference Price:Get Latest Price
US $4,490-7,980 / Pieces | 1 Piece/Pieces gps receiver with nmea-0183 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ComNav
Model Number:
M300 Mini
Channels:
496
GPS:
L1 C/A, L2C, L2P, L5
BeiDou:
B1, B2, B3
GLONASS:
L1 C/A, L1P, L2 C/A, L2P
Galileo:
Reserved
SBAS:
WAAS, EGNOS, MSAS,GAGAN
Size(W*H):
191mm*142mm*52mm
Weight:
0.8 Kg
Delivery:
TNT/DHL/FF/Other Express
Application:
Land Surveying/ Machine Control/Agriculture/Monitoring System
Supply Ability
Supply Ability:
688 Piece/Pieces per Month gps receiver with nmea-0183
Packaging & Delivery
Packaging Details
- M300 gps receiver with nmea-0183:
Single package size: 40X31X17 cm
Single gross weight: 3.5 KG
Packaging: Total 1 Carton 1 Piece Receiver in 1 Carton
- Gross Weight: 3.5 Kg/ Net Weight: 3 Kg.
Port
Shanghai
Lead Time :
Within 7 Days after Payment

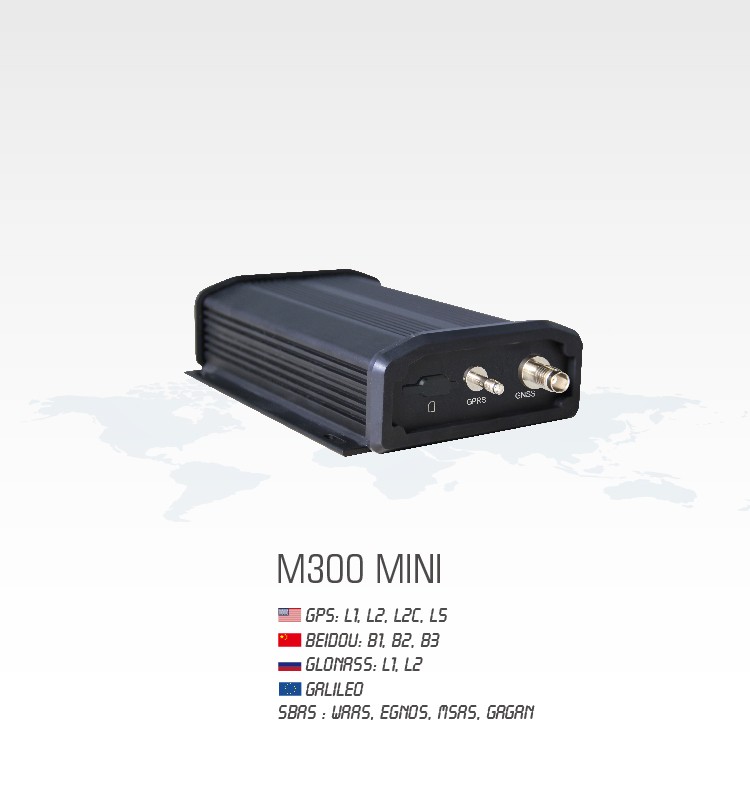

ComNav SinoGNSS M300 Mini GPS Receiver with NMEA-0183










Signal Tracking

Positioning Specifications

• - 496 Channels
- GPS: L1 C/A, L2C, L2P, L5
- BeiDou: B1, B2, B3
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- Galileo, QZSS3
- SBAS: WAAS, EGNOS, MSAS, GAGAN

• Post Processing
- Horizontal: 2.5 mm + 0.5 ppm RMS
- Vertical: 5 mm + 0.5 ppm RMS
Single Baseline RTK (<30km)
- Horizontal: 8 mm + 1 ppm RMS
- Vertical: 15 mm + 1 ppm RMS

Network RTK

- Horizontal: 8 mm + 0.5 ppm RMS
- Vertical: 15 mm + 1 ppm RMS
• E-RTK
 (baseline<100 km)
-Horizontal: 0.2 m + 1 ppm RMS
-Vertical: 0.4 m + 1 ppm RMS
• DGPS : < 0.4 m 3D RMS
• SBAS : < 1 m 3D RMS
• Standalone: <1.5 m 3D RMS

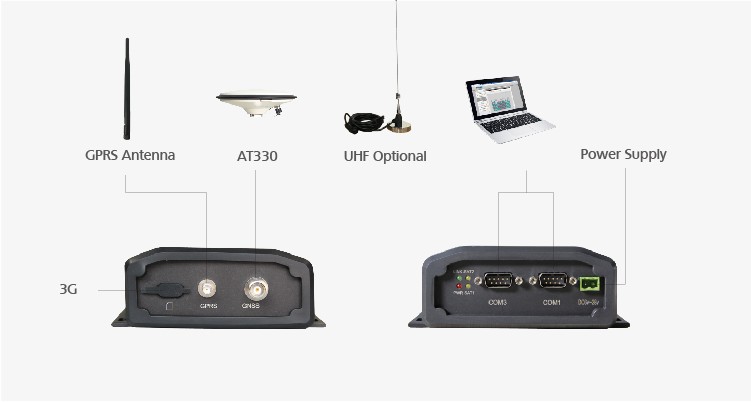

Communications

Data Format

• 1 TNC connectors for GNSS antenna
• 1 SMA male connector for GPRS antenna (50Ω)
• Integrated 3.5G cellular modem supporting Ntrip protocol
• 2 DB9 male ports (Standard RS232 protocol)
• 2P-5.08 SFP fool-proofing connector
• 4 LED indicators (Power, Satellites tracking and differential data)
• 1 SIM card slot
• 1 Pulse per Second (PPS) output\Event Marker input/UHF

• Correction data I/O:
RTCM 2.X, 3.X, CMR(GPS only), CMR+(GPS only)
• Position data output:
- ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA,
VTG, GST; PTNL,PJK; PTNL,GGK; PTNL,AVR; NAVPOS
- ComNav Binary data: up to 100Hz
- BINEX Data: 0x00, 0x01-01, 0x01-02, 0x01-05,0x7d-00, 0x7e-00, 0x7f-05
- Position data output rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz

Physical

Environmental

• Size(L×W×H): 191mm×142mm×52mm
• Weight: 0.8kg
• Housing: Rugged aluminum alloy housing
• Shock and Vibration: Designed to survive a 1m drop onto concrete

• Working temperature: -40 °C to + 75 °C
• Storage temperature: -45° C to + 85 °C
• Humidity: 95% no condensation

Electrical & Antenna

Software

• Input voltage: +6 V ~ +28 VDC
• Power consumption: <2.5W

• AT-series GNSS antenna
• 5 m/10 m RF Cables

• ComNav Compass Receiver Utility software



   Packaging Content:


1   Packing Content Sample

6  Serial RS-232 to 7 Pin Data Cable

2   M300 Mini GNSS Receiver

7  DB9 Double Female Data Cable

3   AT330 GNSS Antenna

8  Power Supply

4   GPRS Antenna (Optional)

9  Set of international jack adaptors

5   Power Cable

10 10 meters GNSS Antenna Cable
